Modern Fitted Family Bathroom Wainbody Avenue South Coventry

This is a bathroom renovation that we carried out on Wainbody Avenue South Coventry. The bathroom size is 186cm by 212cm long. The original layout of the bathroom has the bath situated in the wrong location. The bath is 170cm long, the area the bath is placed is 186cm leaving a gap of 16cm. The bath was originally fitted with the gap at the tap end that resulted with water sitting on the shelf at the end of the bath. Below is the drawing of the original bathroom design

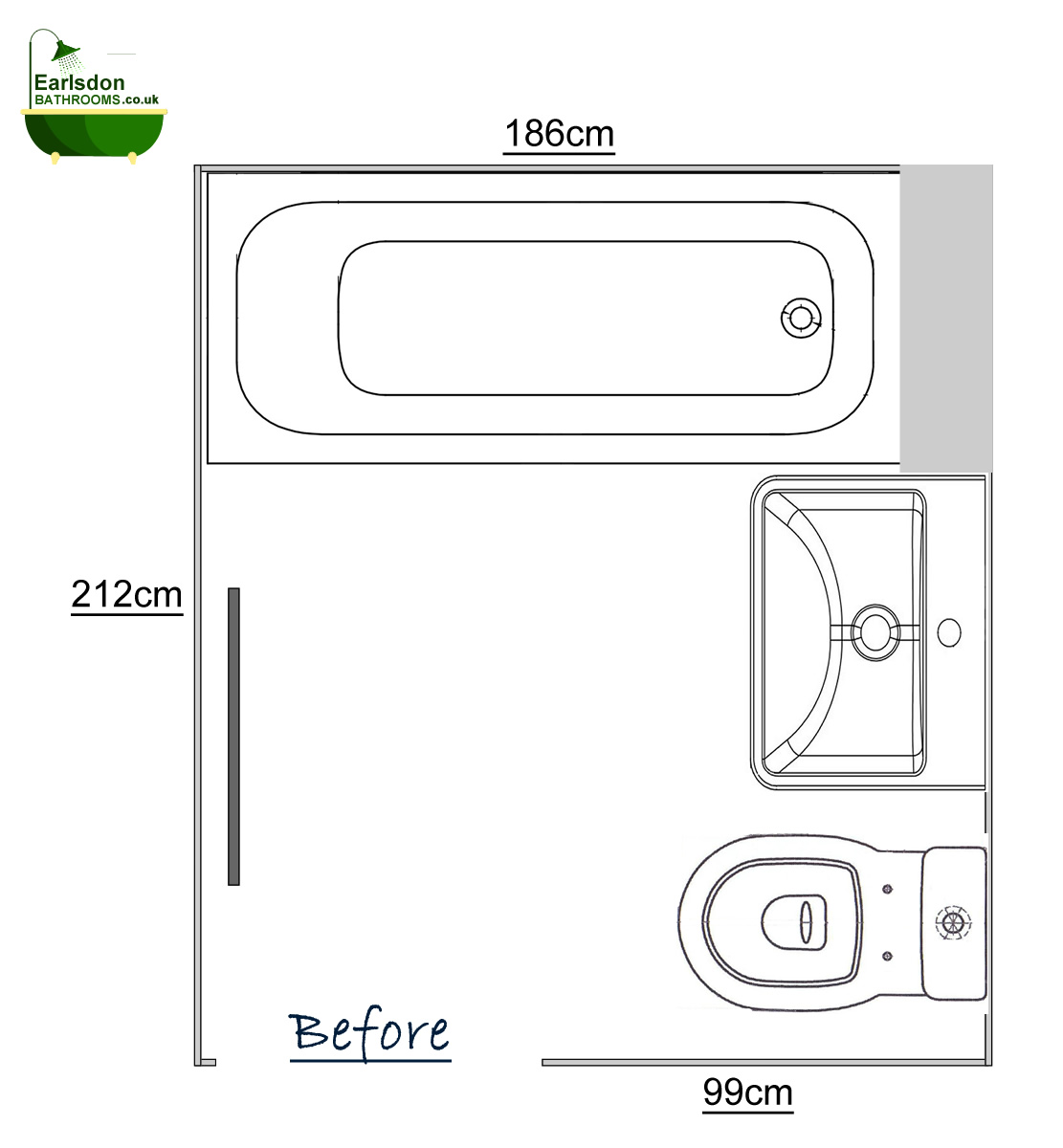

Old bathroom design Wainbody Avenue South Coventry

The new bathroom design places the bathroom with the tap end of the bath against the wall, leaving the void at the end of the bath. This will help keep the area water tight. We also suggested a slightly smaller vanity basin allowing for a space between the bath and basin, and the basin and the toilet. Below is the new bathroom design that we finally fitted

New bathroom design Wainbody Avenue South Coventry

Images of the Original Bathroom

Below are two images of the bathroom before the work began.

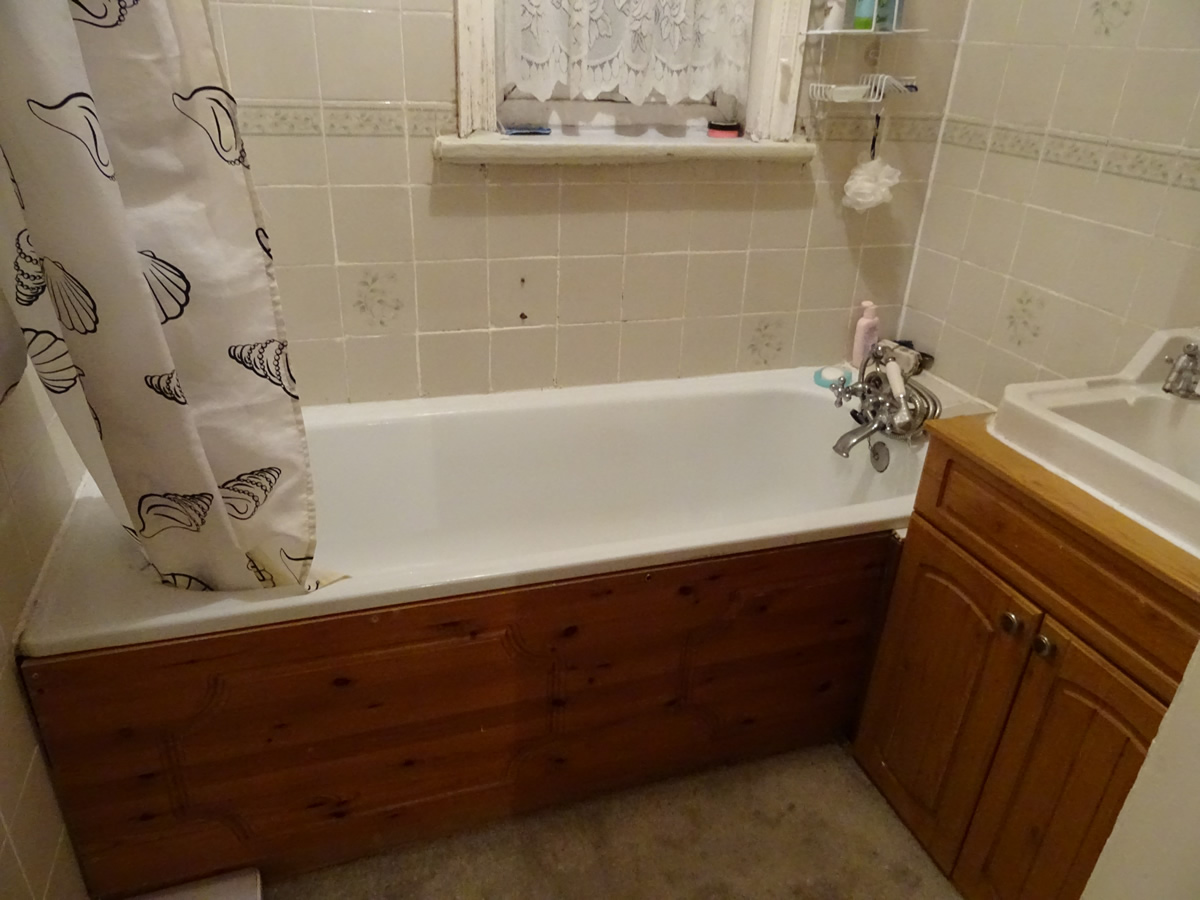

old bathroom Wainbody Avenue South Coventry

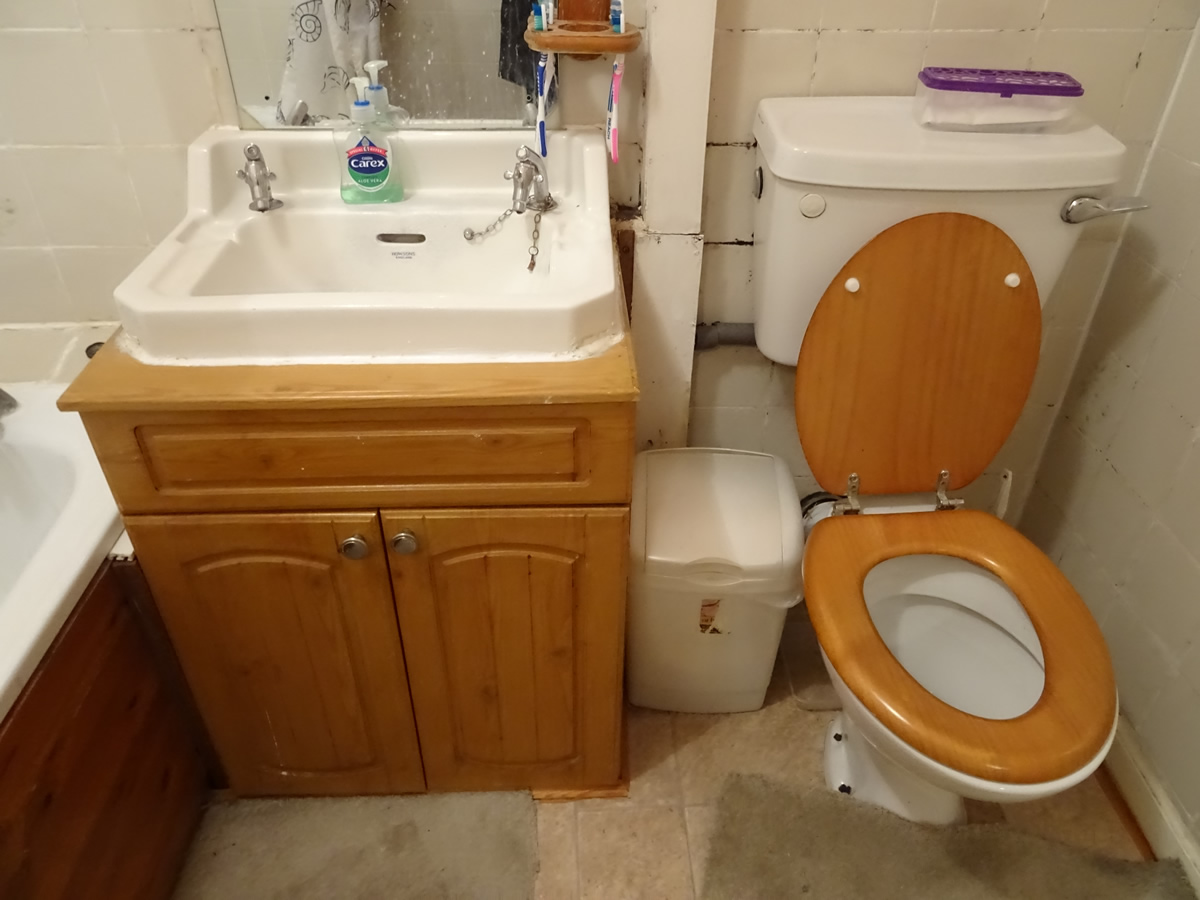

old bathroom with basin and toilet Wainbody Avenue South Coventry

Images of the Bathroom when everything removed

When we began the bathroom renovation, we removed the original bathroom products and tiles. We then removed the plaster fro the brick walls.. Two of the internal walls are made of lath and plaster, removed the lath and plaster exposing the studded wall structure. Below are the images of the bathroom space after all products were removed.

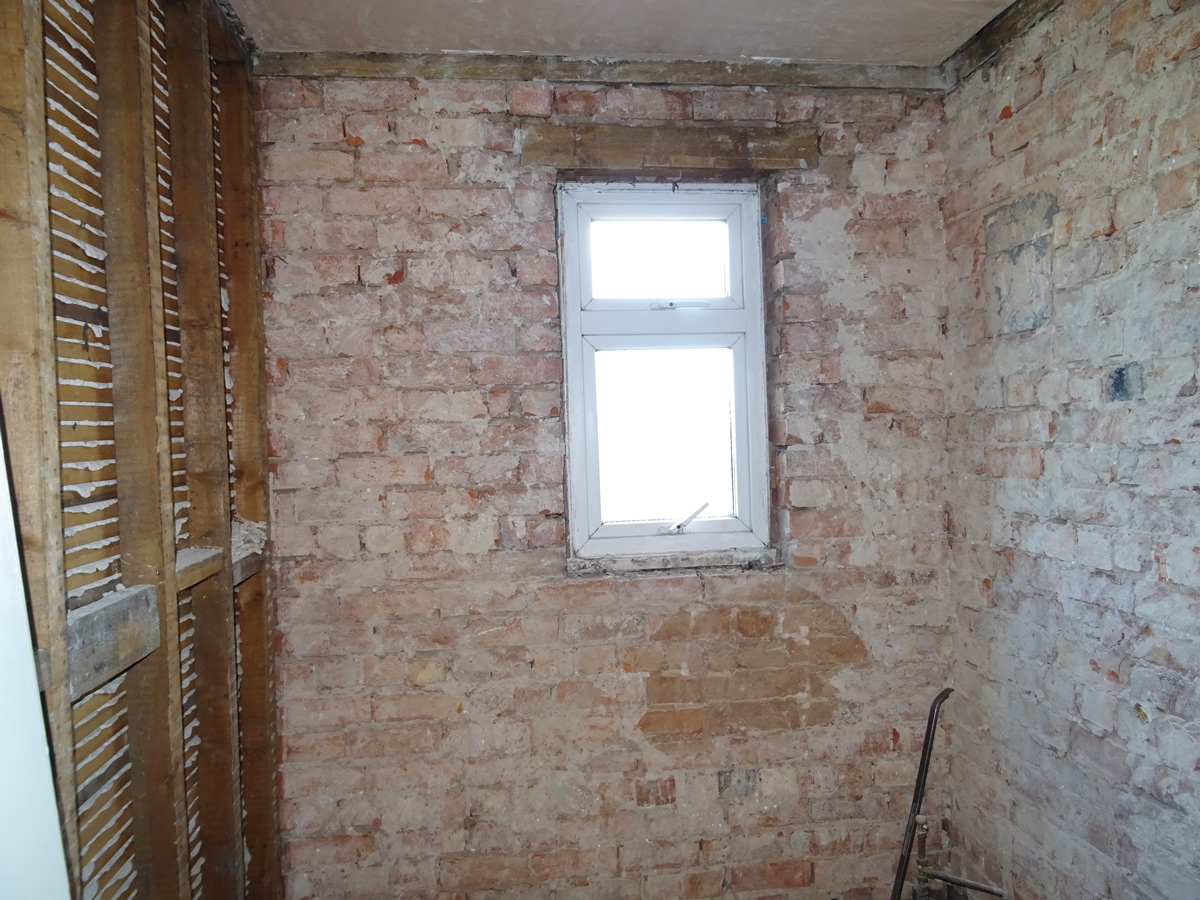

Bathroom stripped down to brick in Coventry

Bathroom lath and plaster removed Coventry

Items fitted in the Bathroom

  • Tavistock Q60 Close coupled toilet pan and cistern
  • Vitra Ecora 3 drawer 60cxm wide vanity basin draw unit with basin
  • Tavistock Blaze Bath Filler tap
  • Tavistock Blacze basin filler tap
  • Trojan cast reinforced Elite straight bath
  • Reinforced bath panel
  • Aqalisa Sassi electric 10.5kW shower with adjustable shower head
  • 500mm wide by 1600mm high chrome towel warmer
  • Quartz white floor tiles
  • Porcelain wall tiles

Images of the bathroom when completed

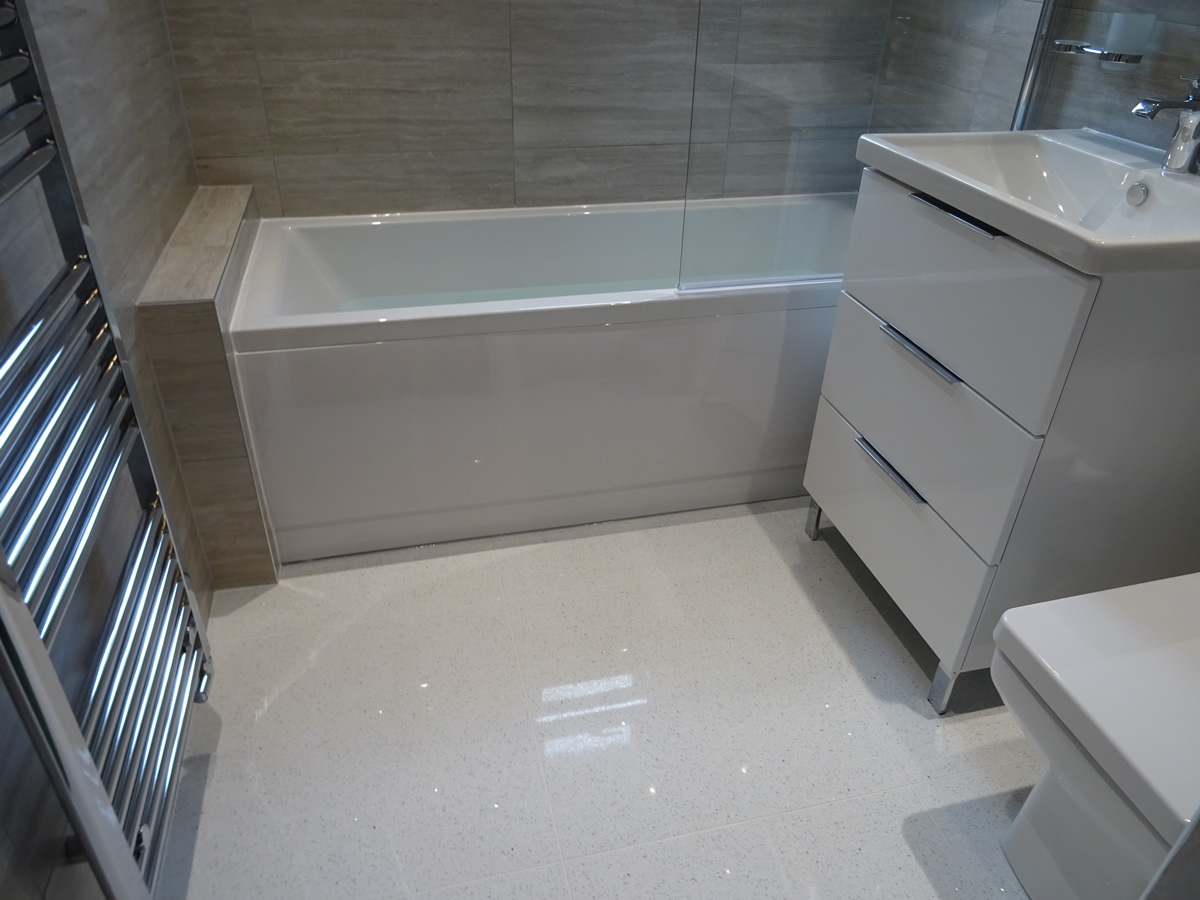

Fitted bathroom Wainbody Avenue South Coventry

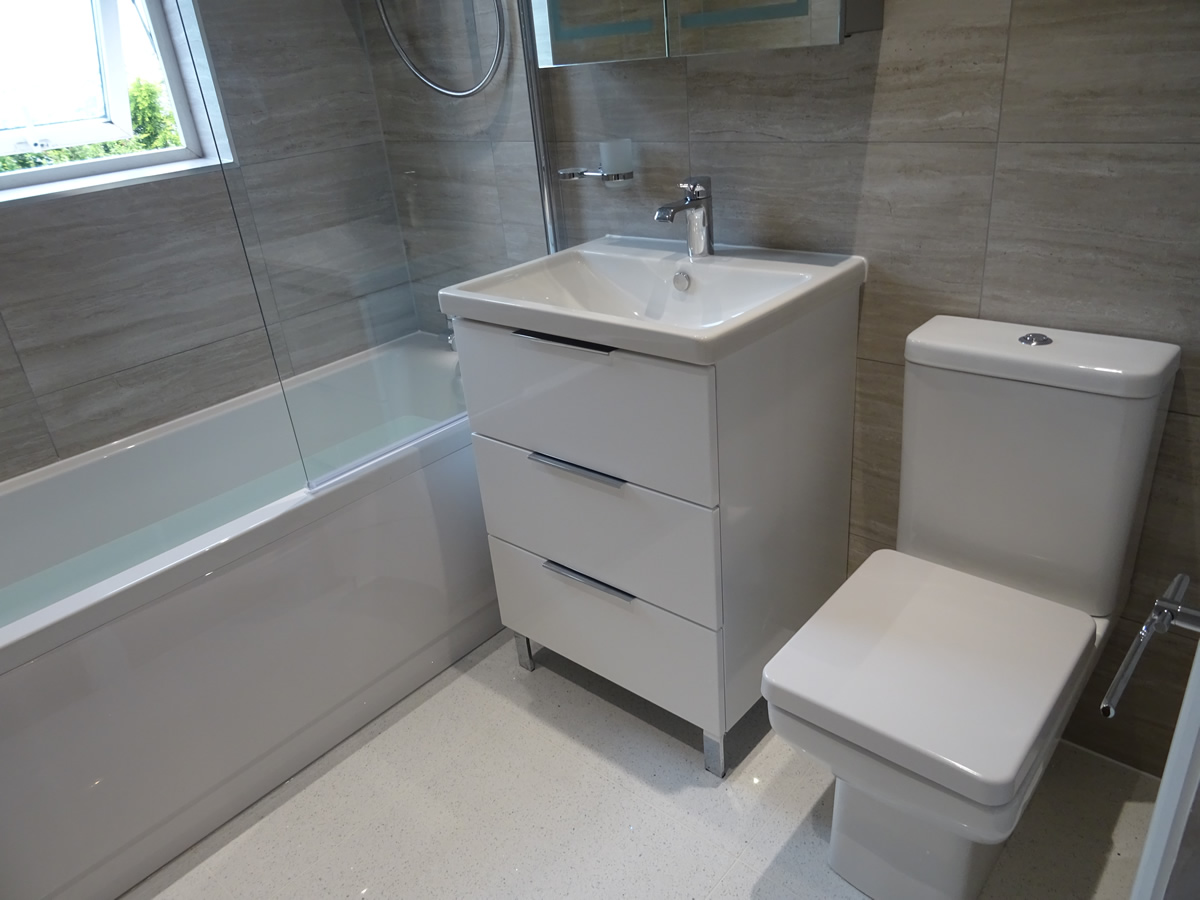

Modern Fitted bathroom Wainbody Avenue South Coventry

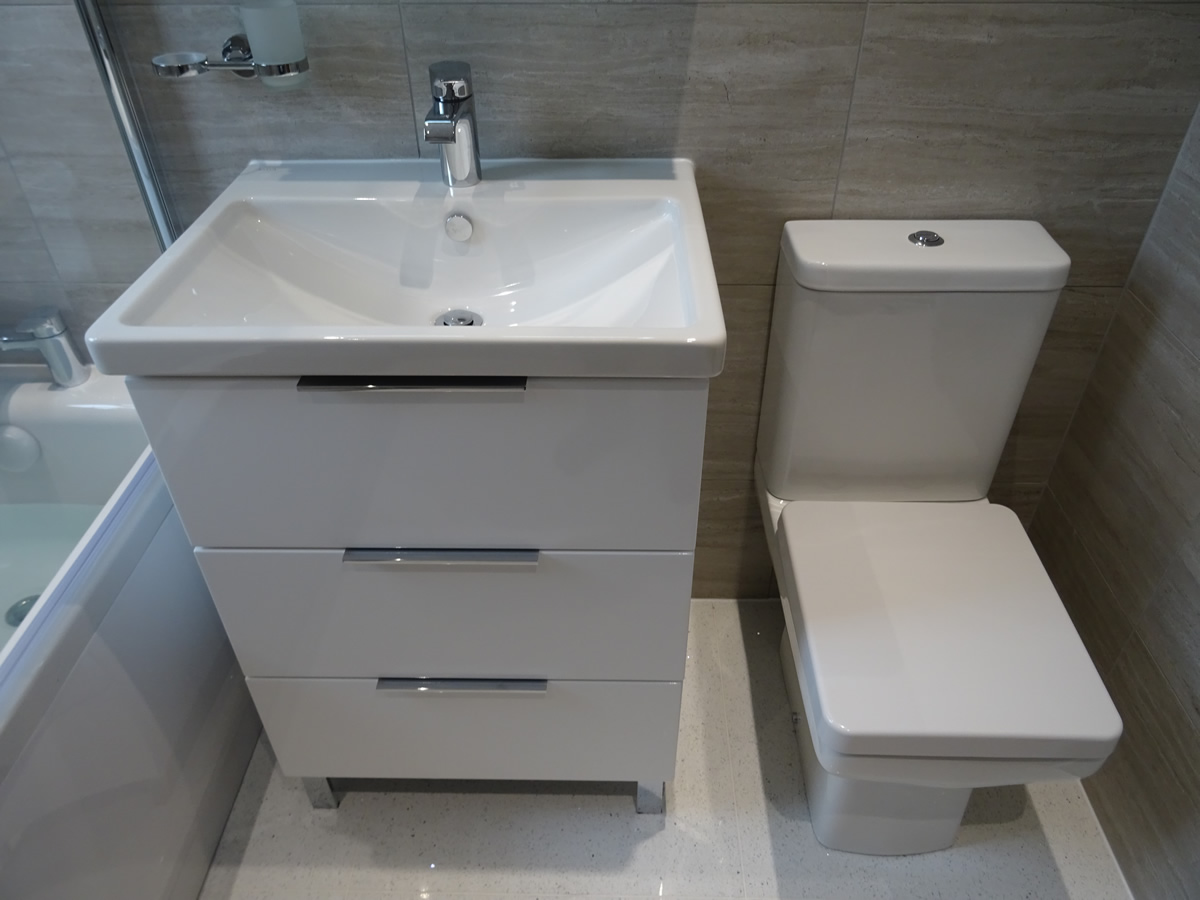

Bathroom fitted with Basin and Toilet Coventry

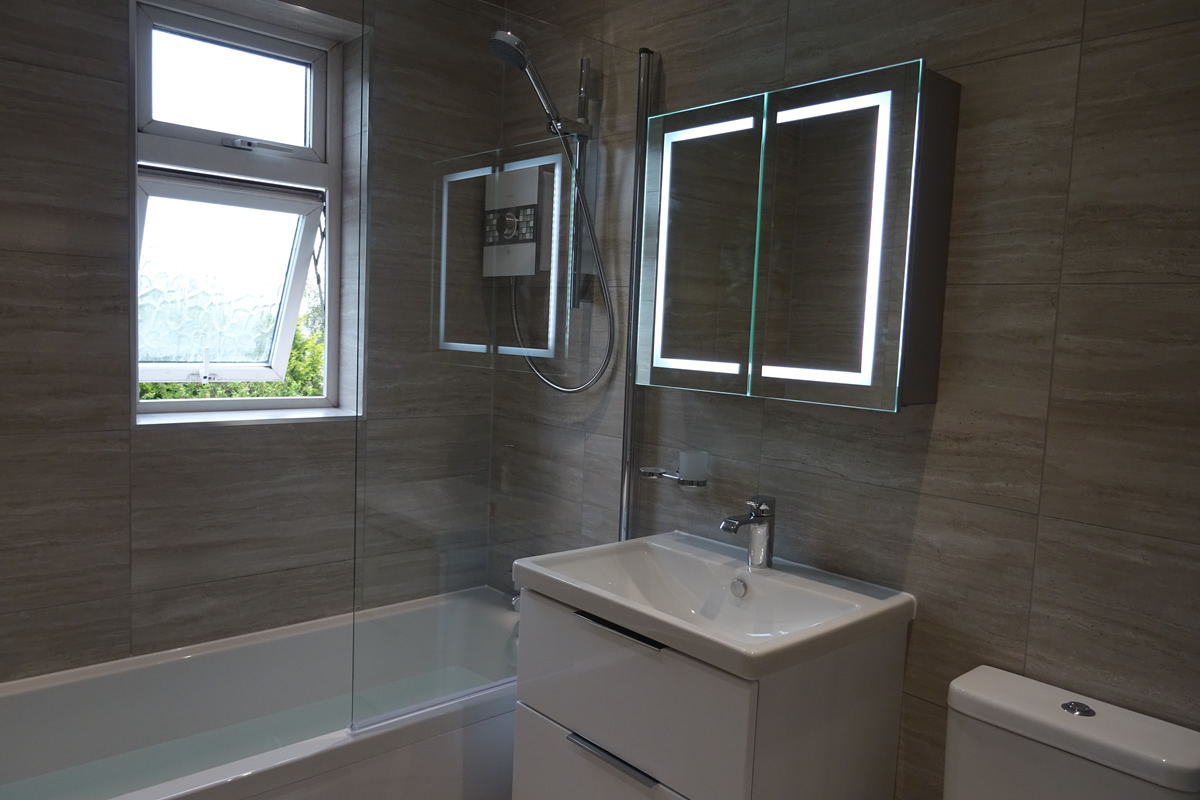

Bathroom fitted with LED mirror cabinet above basin

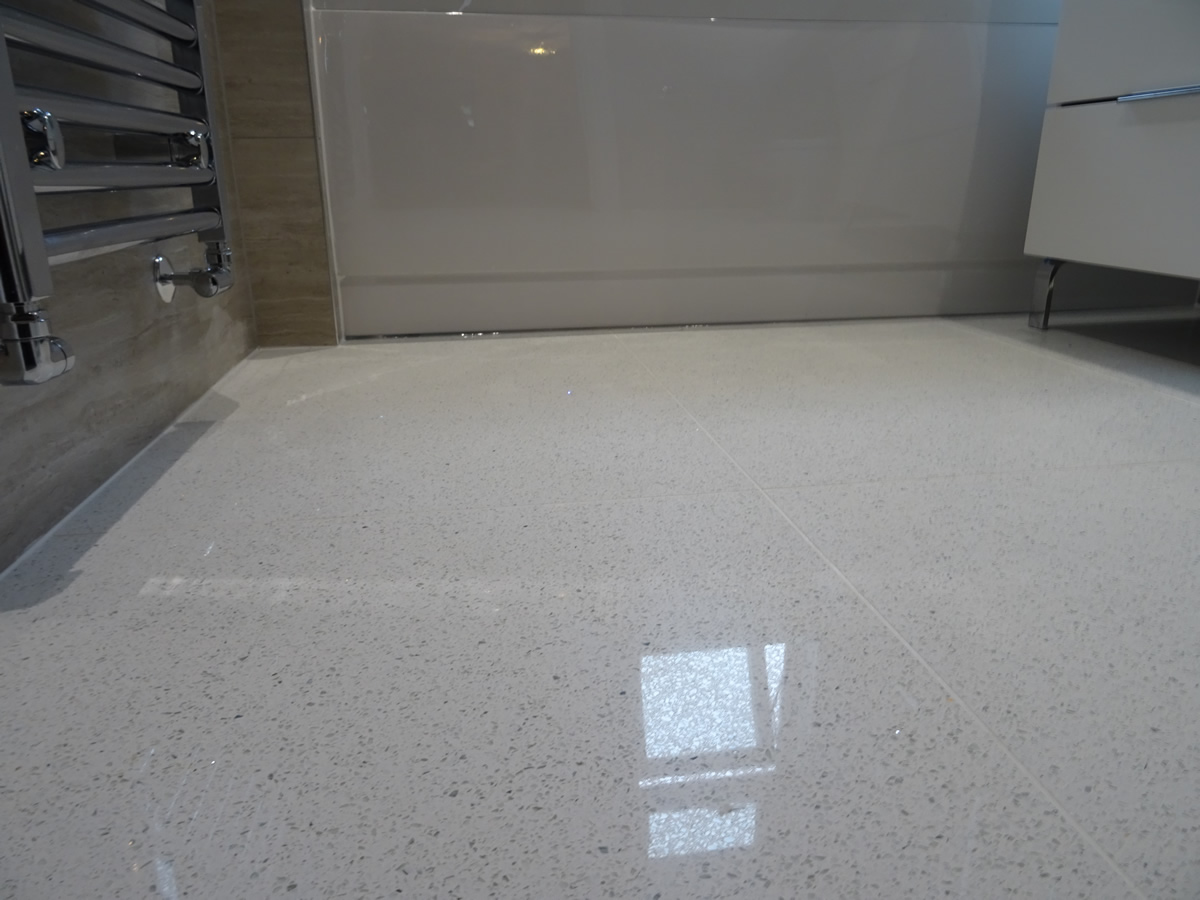

Quartz white bathroom floor Covenry

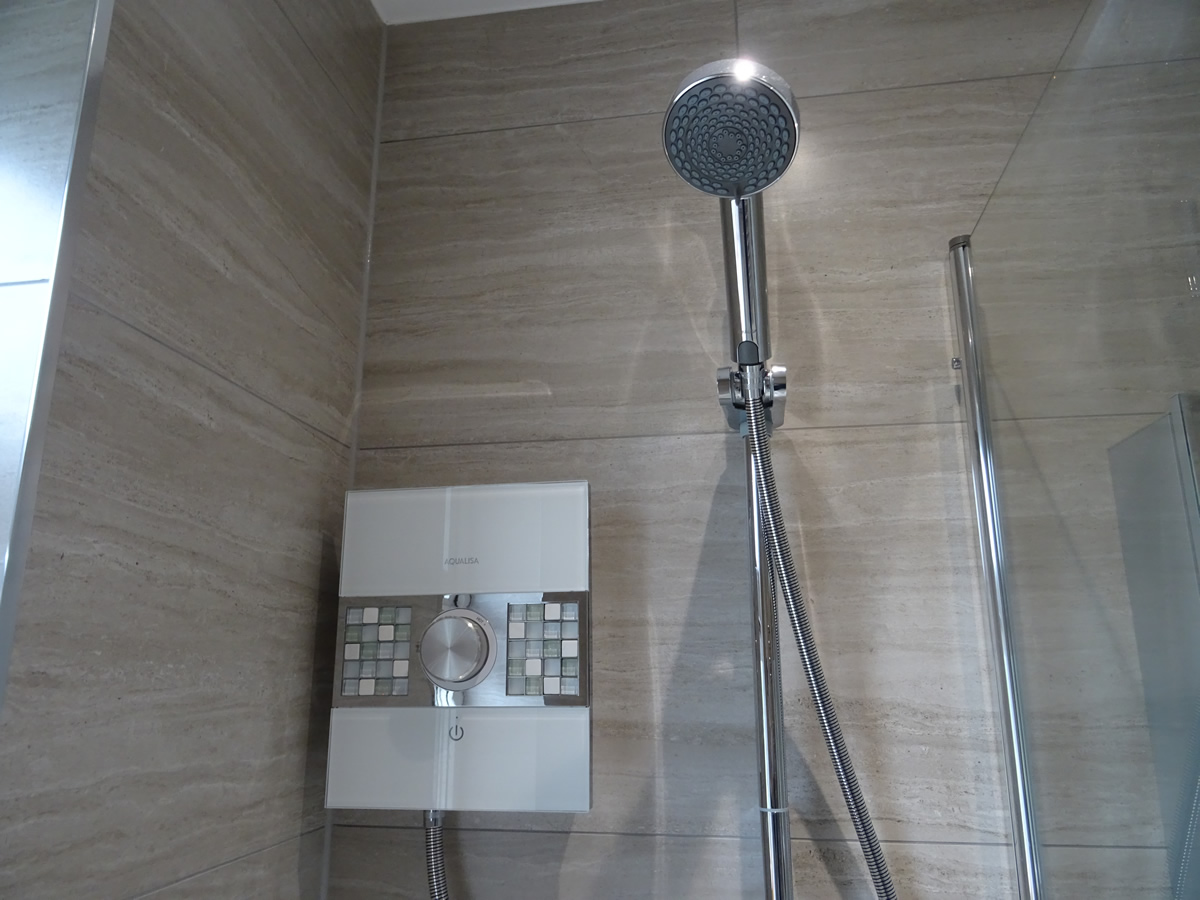

Aqalisa Sassi 10.5kW electric shower

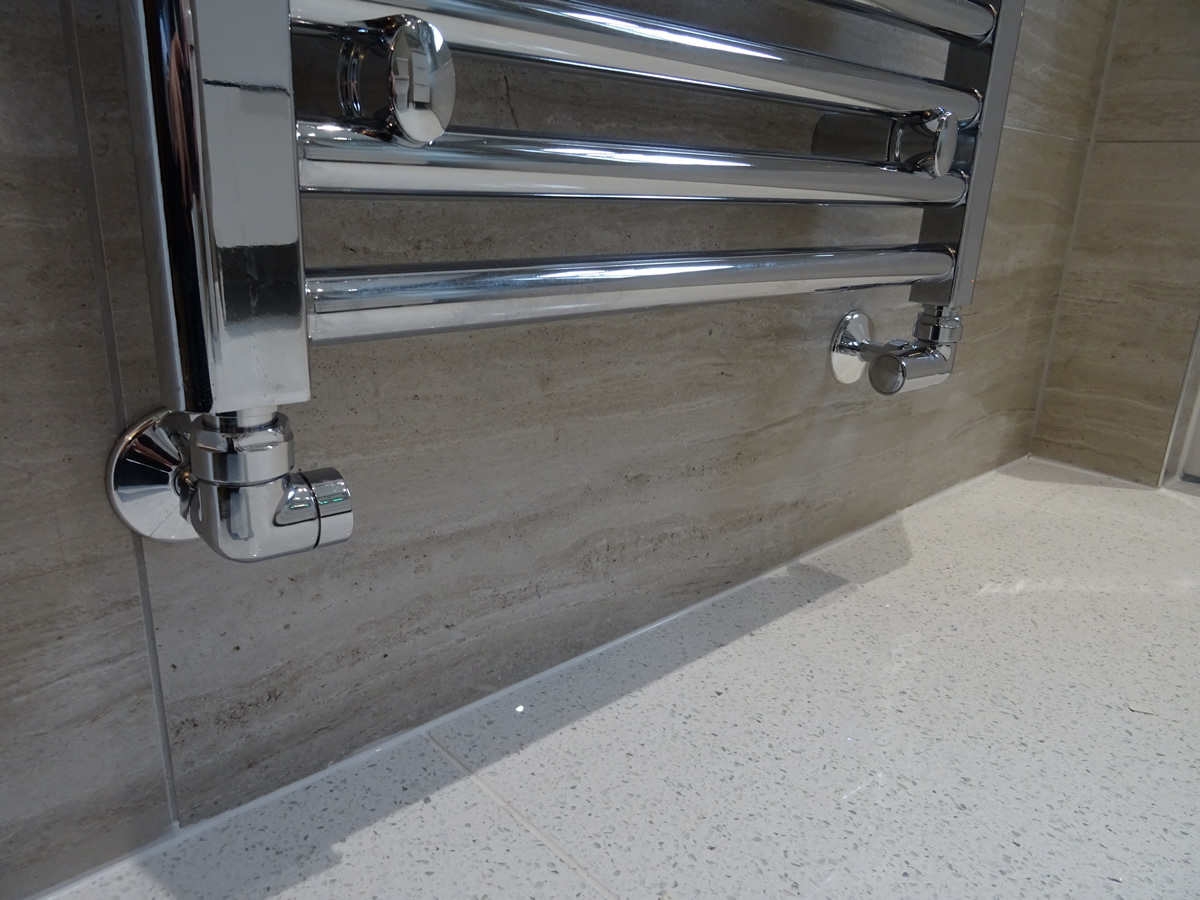

Chrome towel warmer with chrome heating pipes Coventry

New bathroom Fitted  Wainbody Avenue South Coventry

360 Degree Video of the Bathroom
